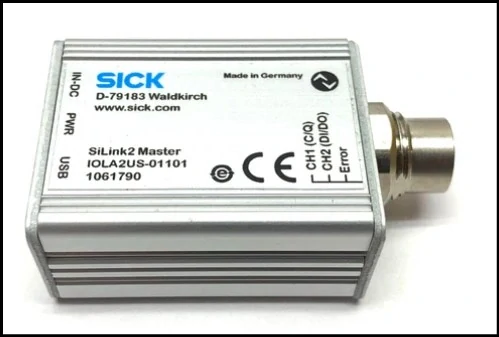

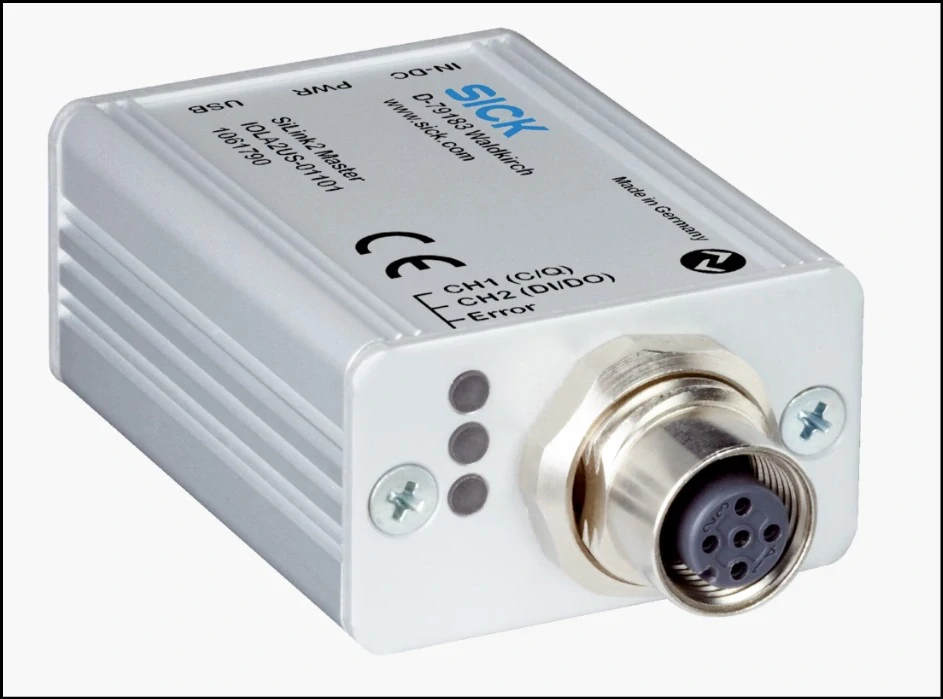

IOLA2US-01101 (SiLink2 Master) IO-Link Gateway

SICK

● Connection modules, IOLA2US-01101 (SiLink2 Master) IP20 (EN 60529)
● Accessory family: Connection modules IO-Link
● Description: IO-Link V1.1 Class A port, USB2.0 port,moptional external power supply 24V / 1A

Technical data (typ.) +20°C, 24 V DC
Inverse polarity protection Yes
Power supply 5 V / 500 mA (PC USB), 24 V / 80 mA (IO-Link device from USB), 24 V / 1 A (IO-Link device
from the power supply)
Protection class III, operation on protective low voltage
To be used for For devices with IODD Specification 1.0.1 and 1.1
Scope of delivery USB IO-Link Master V2, USB A-B cable, Power supply 24 V DC / 24 W
Functions With PC
Communication IO-Link specification V 1.1, IO-Link port class A
Ambient temperature during operation 0 … +45 °C
Protection type IP 20

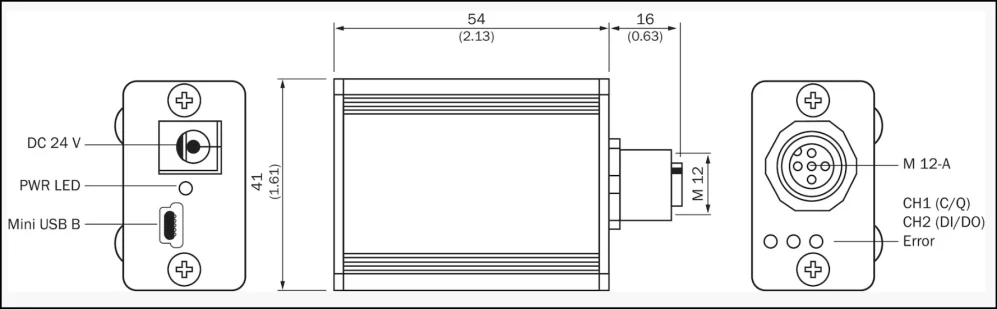

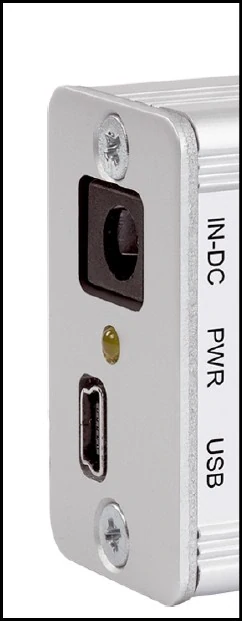

Connection USB (Mini USB B, TYPE 2.0)

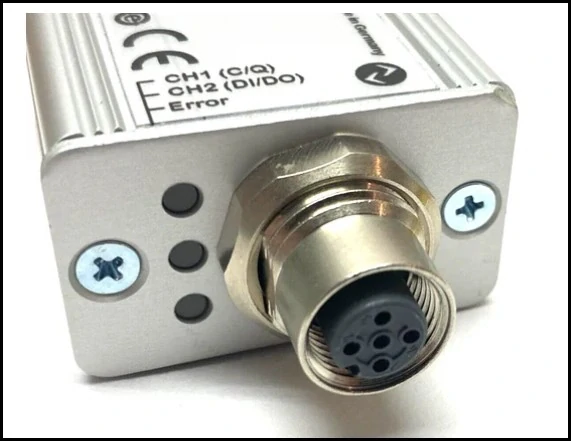

Connection 2 Socket, M12
Connection 3 Power supply
