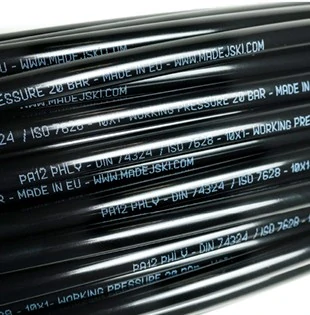

PA tube 8x1mm, 20bar, DIN74324, Pa12

- Complete specifications
PA tube 8x1mm, 20bar, DIN74324, Pa12On stock 200 pcs0,99 €/ pcs
Complete specifications
The full length of the package is 100m, but it can be shortened.
The minimum quantity is 1m and shortening is free of charge.
SPECIFICATION:
Type of material | Polyamid tube-resistant version |
Outside diameter | 8mm |
Thickness | 1mm |
Length of package | 100m |
Operating temperature | -35...85°C |
Bending radius: | 40mm |
Pressure: Standard working max: | 26 bar |
Pressure: to destroy: | 77 bar |
If temp. is 20C° -max pressure: | 100% - 26,0 bar |
If temp. is 30C° -max pressure: | 83% - 21,6 bar |
If temp. is 40C° -max pressure: | 72% - 18,7 bar |
If temp. is 60C° -max pressure: | 58% - 15,0 bar |
If temp. is 80C° -max pressure: | 47% - 12,2 bar |
Polyamide is one of the most common materials used for technical applications for its flexibility and mechanical properties.
Characteristics: Mechanical properties, godd heat resistance, low water absorption, reistance to technical hydrocarbons and oils and excellent inactivity to the chemical agents.
Applications: Particularly indicated for all applications where a high mechanical performance is necessary to traction and to continuous or alternate flexion, as robotic, pneumatic, tool, industrial machineries, etc. or when there is the necessity of high flexibility, especialy in cool applications, truck brakes, etc.
